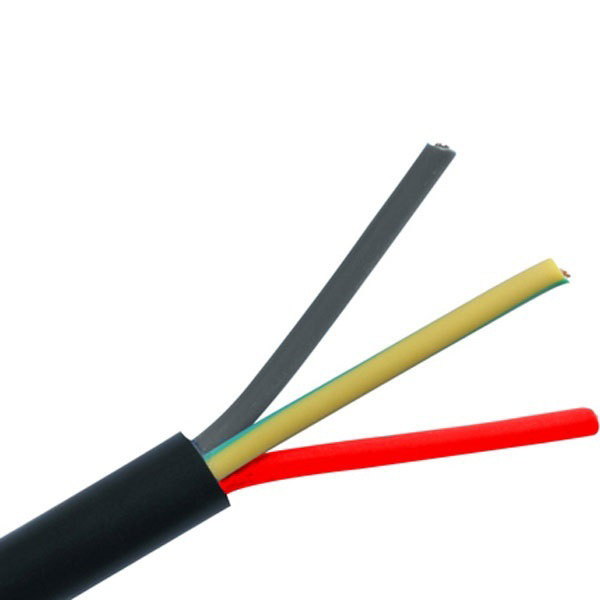

This Finolex 2.5mm 3 Core 100m Flexible Wire is commonly used in ‘Single Insulated’ appliances which must have an earth connection. It is used in 3 phase power like motor, wiring of dual light switch, where same light is controlled by two or more switches.

Product specification
BrandFinolex
Product Category2, 3, 4 & 6 Core Cables
Size of Conductor2.5 sq mm
Core3 Core
Length100 mtr
Conductor MaterialCopper
ColourBlack
Insulation MaterialPVC
Current Rating AC20 Amp
Resistance (Max.) per Km at 20° C7.98 ohm
Number/Nom. Dia of Wires* (Nom.)50/0.25 mm
Thickness of Insulation (Nom.)0.7 mm
Nominal Thickness of Sheath1.0 mm
Max. Overall Diameter9.6 mm
CertificationIS-694:2010
Manufacturer DetailsFinolex Cables Ltd, 26 - 27, Mumbai - Pune Road, Pimpri, Pune, Maharashtra - 411018, India
