Features

  • Safe : ABB MCB's have finger touch proof terminals conforming to IP20 degree of protection. Hence ABB MCB's prevent from electrical shock when it contacts human body.
  • Tropicalization : These MCB's are tropicalized, hence they are safe to use in high humid environment.

Technical Data

  • Standards : Three Pole
  • Tripping Characteristics : C Curve
  • Rated Current : upto 20A
  • Rated Voltage : 400/415 V AC
  • Max Operating Voltage : 400 V AC
  • Min Operating Voltage : 12 V AC
  • Rated Frequency : 50/60 Hz
  • Rated Short – Circuit Capacity : 10kA
  • Over Voltage Category : lll
  • Pollution Degree : 2

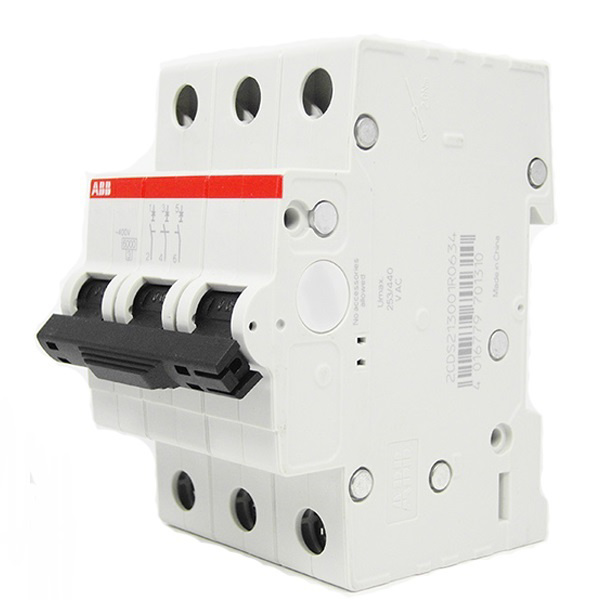

This 20A TP C-Curve 10kA MCB is a three pole highly durable MCB with finger touch proof terminals conforming to IP20 degree of protection. It is used in Three Phase Supply to break the phase and the neutral is not the part of the MCB. Moreover, it is ideal for the protection against overload and short circuit for Motor and other Inductive loads.

Product specification
BrandABB
Product CategoryThree Pole MCB
SeriesN/A
Current Rating20A
Triping CharacteristicsC-Curve
Rated Short-Circuit Capacity10kA
ColourWhite
Voltage230 / 400V AC
Rated Operating Voltage Ue440V
Insulation Voltage500V
Nominal Frequency50/60 Hz
Mounting TypeOn symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents1 TP MCB
CertificationIEC 60947-2
MaterialHalogens-free plastic materials
Warranty2 Years (on manufacturing defect)
