Features

  • Safe : ABB MCB's have finger touch proof terminals conforming to IP20 degree of protection. Hence ABB MCB's prevent from electrical shock when it contacts human body.
  • Tropicalization : These MCB's are tropicalized, hence they are safe to use in high humid environment.

Technical Data

  • Standards : Double Pole
  • Tripping Characteristics : C Curve
  • Rated Current : upto 40A
  • Rated Voltage : 400/415 V AC
  • Max Operating Voltage : 400 V AC
  • Min Operating Voltage : 12 V AC
  • Rated Frequency : 50/60 Hz
  • Rated Short – Circuit Capacity : 10kA
  • Over Voltage Category : lll
  • Pollution Degree : 2

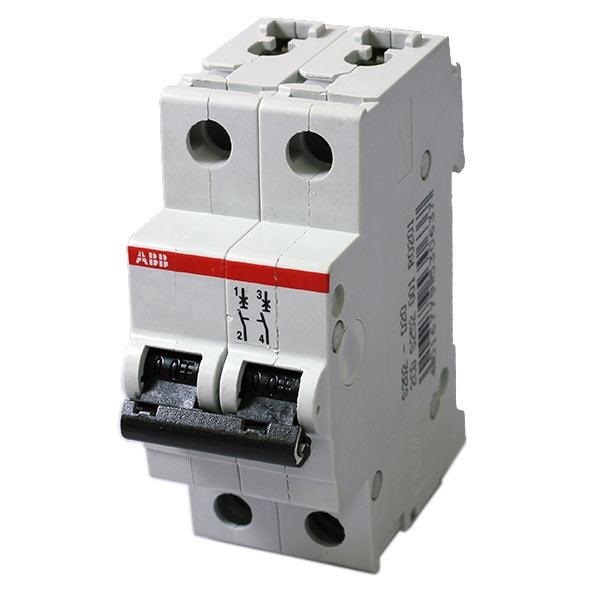

This 32A DP C-Curve 10kA MCB is a two pole highly durable MCB with finger touch proof terminals conforming to IP20 degree of protection. It is used in Single Phase Supply to break the phase as well as neutral. It is ideal for the protection against overload and short circuit for Motor and other Inductive loads. So, anytime if there is a spike in line voltage or a sudden increase in line current, then this MCB will trip, causing the circuit/power to break, thereby eliminating any associated damage to the connected appliance/load.

Product specification
BrandABB
Product CategoryDouble Pole MCB
SeriesN/A
Current Rating40 Amp
Triping CharacteristicsC-Curve
Short Circuit Withstand Capacity10kA
ColourWhite
Voltage230 / 400 V AC
Rated Operating Voltage Ue440V
Insulation Voltage500 V
Nominal Frequency50/60 Hz
Mounting TypeOn symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents1 DP MCB
CertificationIEC 60947-2
MaterialHalogen-Free Plastic Materials
Warranty2 Years (against manufacturing defects)
Manufacturer DetailsABB India Limited, #126, Hanchipura Village, Kasaba Hobli, Nelamangala Taluk, Bangalore, Karnataka - 562123, India
