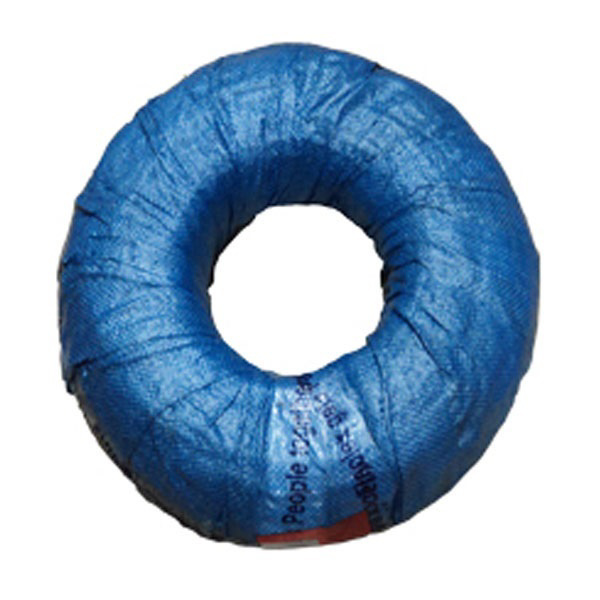

This 10 sq mm Copper Cable from Finolex is PVC Insulated and unsheathed flexible wire conforming to IS: 694 / 90. It is applied in the highly flexible conductors with a wide range of industrial use such as cable harnesses, panel wiring and power generation.
This 10mm 100m copper flexible single core wire is ideal to use in low voltage signals, electrical motors, DC power transformers, panel boards, battery cables etc.

Product specification
BrandFinolex
Product CategorySingle Core (10,16 & 25 Sqmm)
Max. Overall Diameter18.6 mm
Size of Conductor10 sq mm
Length100 mtr
ColourBlack, Blue, Red, Green & Yellow
Resistance (Max.) per Km at 20° C1.91 ohm
Insulation MaterialPVC
Thickness of Insulation (Nom.)1.0 mm
Conductor MaterialCopper
Voltage240 V
CertificationBIS
Manufacturer DetailsFinolex Cables Ltd, 26 - 27, Mumbai - Pune Road, Pimpri, Pune, Maharashtra - 411018, India
