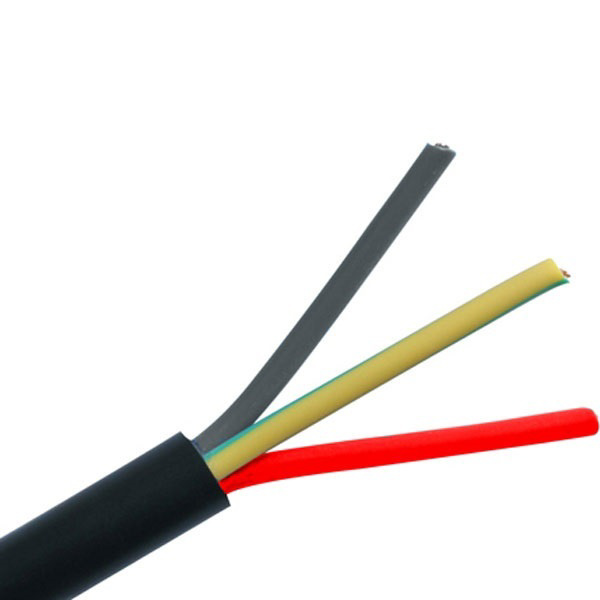

This Finolex 1.5mm 3 Core 100m Flexible Wire is commonly used in ‘Single Insulated’ appliances which must have an earth connection. It is used in 3 phase power like motor, wiring of dual light switch, where same light is controlled by two or more switches. This wire has three separately insulated conductors i.e. live, neutral and earth and is required for anything that requires an earth connection.

Product specification
BrandFinolex
Product Category2, 3, 4 & 6 Core Cables
Size of Conductor1.5 sq mm
Core3 Core
Length100 mtr
Conductor MaterialCopper
ColourBlack
Insulation MaterialPVC
Current Rating AC15 Amp
Resistance (Max.) per Km at 20° C13.3 ohm
Number/Nom. Dia of Wires* (Nom.)30/0.25 mm
Thickness of Insulation (Nom.)0.6 mm
Nominal Thickness of Sheath0.9 mm
Max. Overall Diameter8.0 mm
CertificationIS-694:2010
Manufacturer DetailsFinolex Cables Ltd, 26 - 27, Mumbai - Pune Road, Pimpri, Pune, Maharashtra - 411018, India
