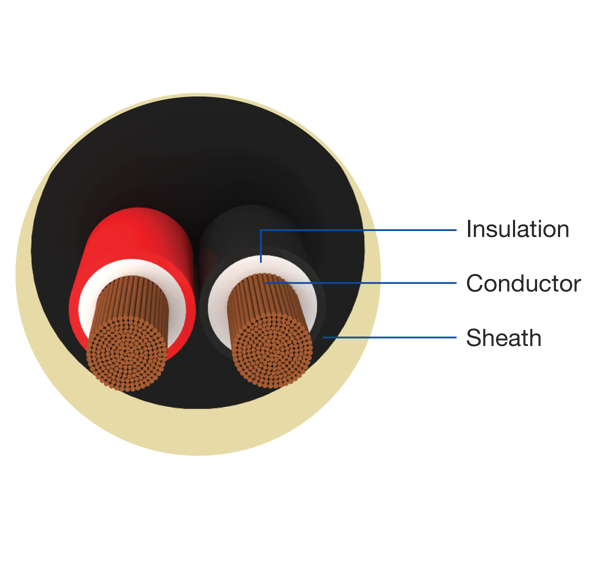

This 1mm 2 Core 100m Flexible Wire is a specially designed cable that has two separate conductors coated with a special insulator, making it more flexible to cope with pressure associated with the moving objects. It is used where only single power phase is required to be conducted or in the appliances that do not require any earth connection.

Product specification
Product Category2, 3, 4 & 6 Core Cables
Size of Conductor1 sq mm
Core2 Core
Length100 mtr
Conductor MaterialCopper
Insulation MaterialPVC
Current Rating AC12 Amp
Resistance (Max.) per Km at 20° C19.5 ohm
Number/Nom. Dia of Wires* (Nom.)32/0.20 mm
Thickness of Insulation (Nom.)0.6 mm
Nominal Thickness of Sheath0.9 mm
Max. Overall Diameter7.0 mm
