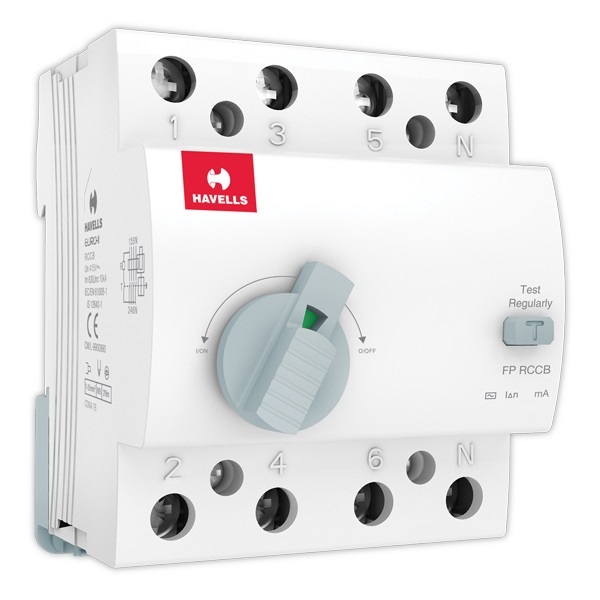

Havells 25A 300mA Four Pole RCCB is capable to sense and compare the difference between the live and neutral voltages and then breaks the circuit when there is any imbalance. Consequently, it provides complete electrical protection together with MCB to both humans as well as equipments. This 300mA Four Pole RCCB has clearly visible ON and OFF positions with red and green colour respectively. It is ideal to useĀ in case of a three-phase supply connection that involves only three phase wires and a neutral. This product is ISI marked as per IS 12640-1 & IEC 61008 - 1 :1996

Product specification
BrandHavells
Product CategoryFour Pole RCCB
Current Rating25 A
Rated Sensitivity300 mA
ColourWhite
Voltage12 V AC
Rated Operating Voltage Ue230/415V~
Insulation Voltage500 V
Nominal Frequency50/60 Hz
Rated Impulse Withstand Voltage Uimp (kV)6 kV
Mounting TypeOn symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents1 FP RCCB
CertificationIS 12640-1 & IEC 61008-1
MaterialHalogens-free plastic materials
Warranty2 Years (against manufacturing defects)
