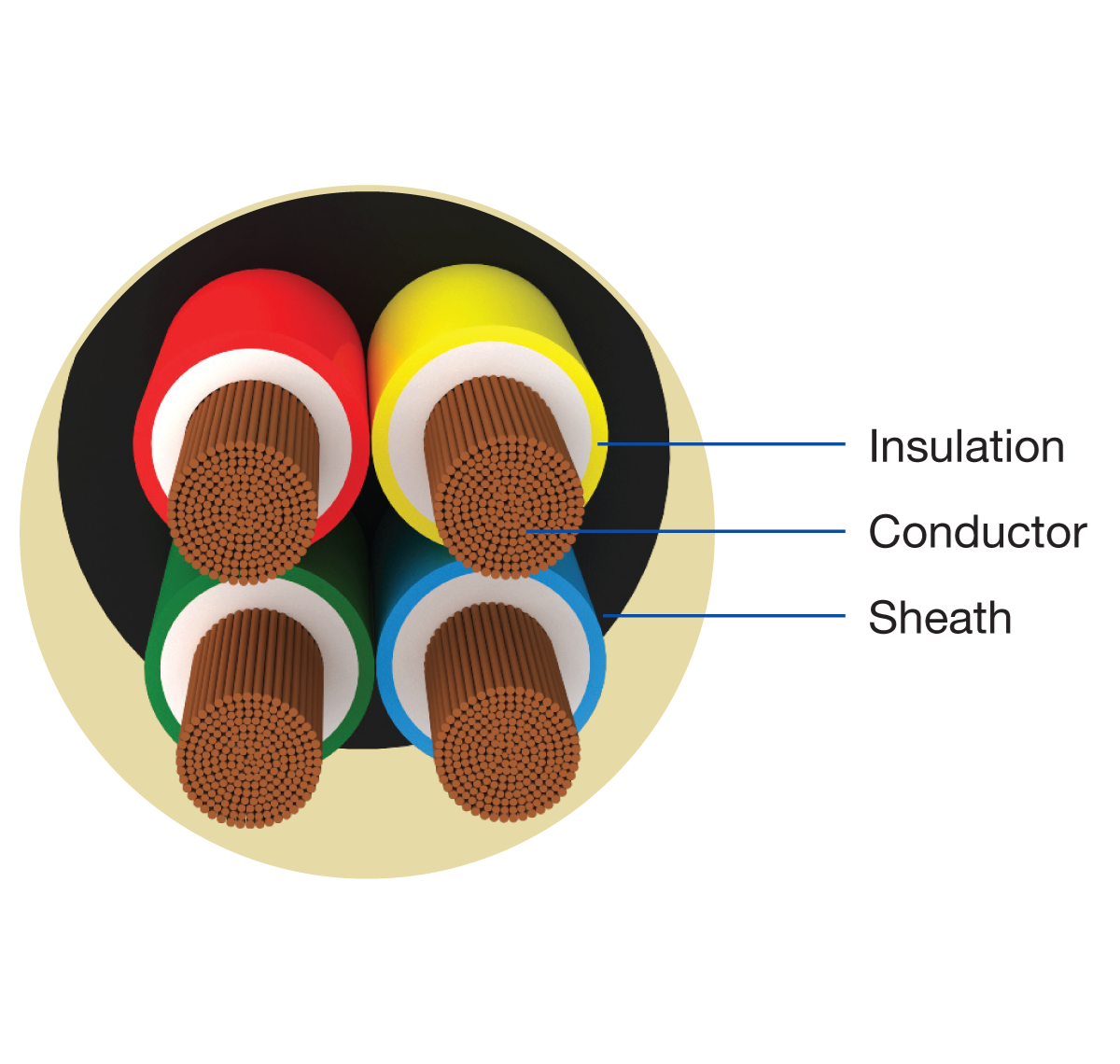

Designed for complex electrical connections, the 2.5 sq mm four core 100 mtr copper flexible wire offers reliable performance in demanding environments. With four high-conductivity copper cores individually insulated and color-coded, it supports easy identification and safe installation. The robust PVC insulation offers superior resistance to wear, moisture, and chemicals, making it suitable for outdoor use, control panels, HVAC systems, and industrial machinery. This Havells 2.5mm 4 Core 100m Flexible Wire is particularly beneficial where multiple electrical functions such as power, control, and signaling are needed within a single cable run. Its 100-meter length provides flexibility and convenience during large installations.

Product specification
BrandHavells
Product Category2, 3, 4 & 6 Core Cables
Size of Conductor2.5 sq mm
Core4 Core
Length100 mtr
Conductor MaterialCopper
ColourBlack
Insulation MaterialPVC
Current Rating AC20 Amp
Resistance (Max.) per Km at 20° C7.98 ohm
Number/Nom. Dia of Wires* (Nom.)50/0.25 mm
Thickness of Insulation (Nom.)0.7 mm
Nominal Thickness of Sheath1.0 mm
Max. Overall Diameter10.7 mm
CertificationIS-694:2010
Manufacturer DetailsHavells India Ltd., QRG Towers, 2D, Sector - 126, Expressway, Noida, Uttar Pradesh - 201304, India
