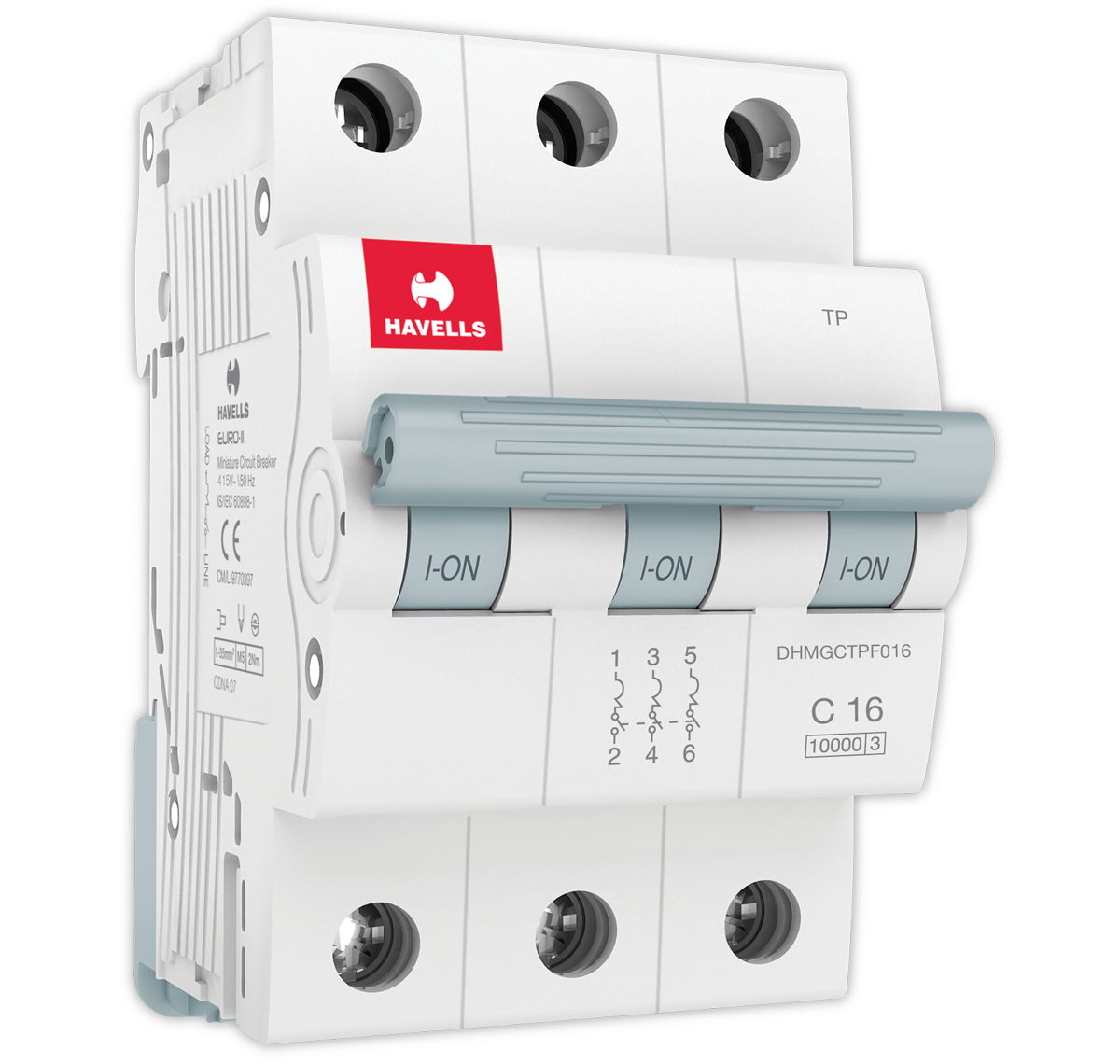

This 16A TP C-Curve 10kA MCB is a three pole highly durable MCB with finger touch proof terminals conforming to IP20 degree of protection. It is used in Three Phase Supply to break the phase and the neutral is not the part of the MCB. It is ideal for the protection against overload and short circuit for Motor and other Inductive loads. So, anytime if there is a spike in line voltage or a sudden increase in line current, then this MCB will trip, causing the circuit/power to break, thereby eliminating any associated damage to the connected appliance/load.

Product specification
BrandHavells
Product CategoryThree Pole MCB
Current Rating16 Amp
Triping CharacteristicsC-Curve
Short Circuit Withstand Capacity10kA
ColourWhite
Voltage240 - 415 V AC
Rated Operating Voltage Ue440V
Insulation Voltage660 V
Nominal Frequency50 Hz
Mounting TypeOn symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents1 TP MCB
CertificationIS/IEC 60898-1
MaterialHalogen-Free Plastic Materials
Warranty2 Years (against manufacturing defects)
Manufacturer DetailsHavells India Ltd., QRG Towers, 2D, Sector - 126, Expressway, Noida, Uttar Pradesh - 201304, India
