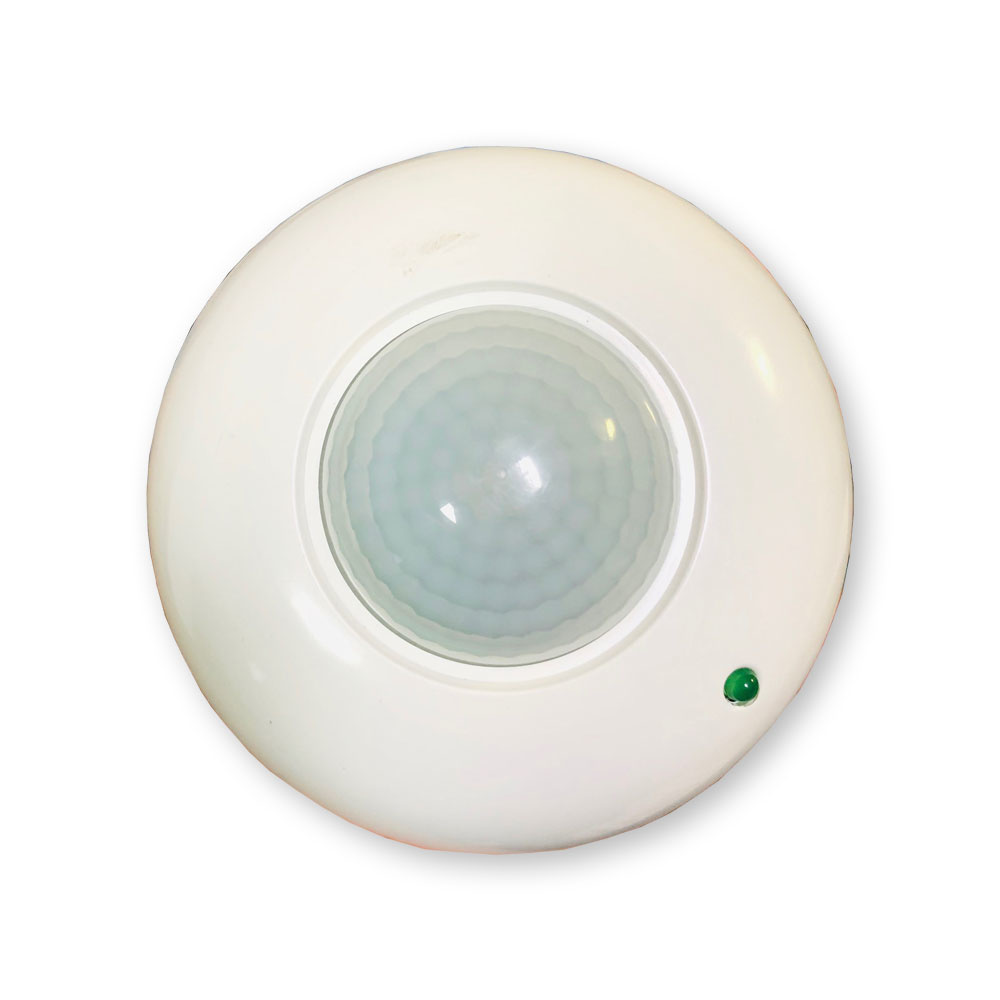

The product adopts good sensitivity detector and itegrated circuit. It gathers automatism, convenience, safety, saving energy and practical  functions. Its utilizes the infrared energy from human as control-signal souce it can start load ar once when one enters deection field. it can identify day and night automatically. It is easy to installed and used widely.

Specification

  • Power Source: 220-240V/AC
  • Power Frequency: 50Hz
  • Ambient Light: <3-2000LUX (adjustable)
  • Time Delay: Min. 10sec to 3Sec | Max. 7min to 2min
  • Rated Load: Max. 1200W LED & 300W Conventional Fittings
  • Detection Range: 360 Degree
  • Detection Distance: 6 meter max (<24d)
  • Working Temperature: -20 Degree to +40 Degree
  • Working humidity: <93%RH
  • Power Consumption: Approx 0.5W
  • Installation Height: 2.2 meter to 4 meter
  • Detection Moving Speed: 0.6 to 1.6 m/s

Funtion:

  • Can identify day and night: the consumer can working state in different ambient light. It can work in the ambient light less tha 3LUX when it is adjusted on the"moon" position (min). As for adjustment pattern, please refer to the testing pattern.
  • Time- Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.
Product specification
BrandIndiabulls
Product CategorySensors
Model NameICLSS01-06
Voltage240V (100-300)AC 50 Hz
Warranty1 Year (on manufacturing defect)
