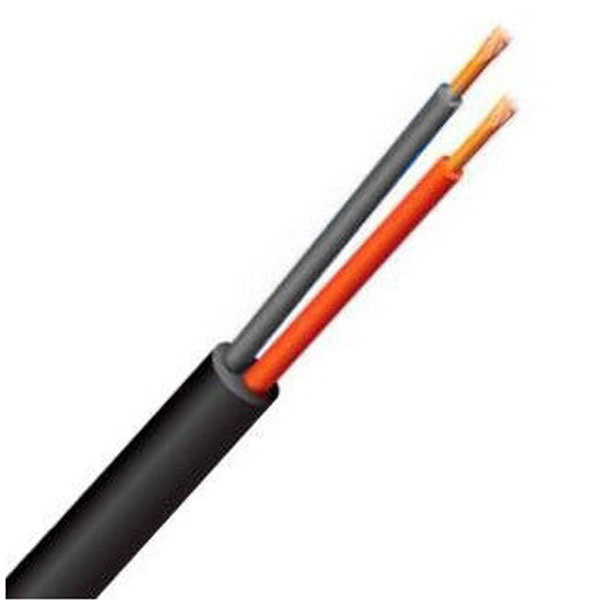

Flexible wires are copper wires with variety of domestic and commercial uses. A common application of copper multicore flexible wires is in Airconditioing systems - both for power as well as signalling. Another common use of flexible wires is in industries for power supply as well as control signalling. Now these muticore flexible wires are available to buy online.

Product specification
BrandKEI
Product CategoryFRLS Multicore
Size of Conductor1 sq mm
Core2 Core
Length100 mtr
Conductor MaterialCopper
ColourBlack
Insulation MaterialFRLS PVC
Current Rating AC13 Amp
Resistance (Max.) per Km at 20° C19.5 ohm
Number/Nom. Dia of Wires* (Nom.)32/0.20 mm
Thickness of Insulation (Nom.)0.6 mm
Nominal Thickness of Sheath0.9 mm
Max. Overall Diameter6.9 mm
Voltage Drop (DC or Single Phase AC)43 mV
Voltage Drop (3 Phase AC)37 mV
CertificationIS-694:2010
