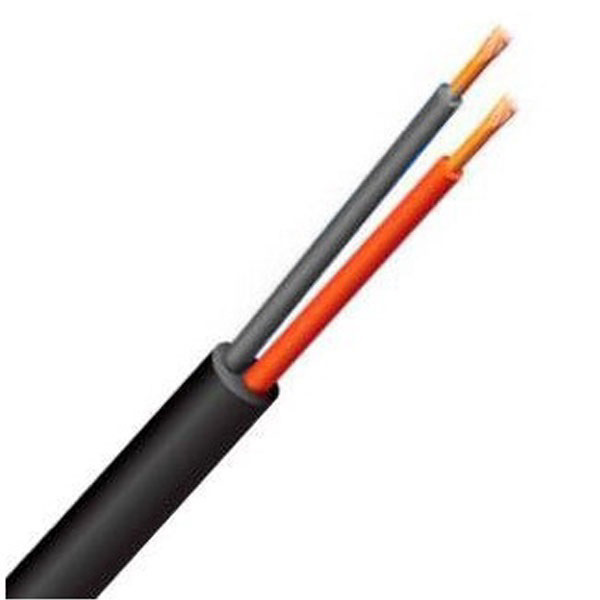

The 1 sq mm Two Core 100 mtr Copper Flexible Wire is designed for reliable performance in domestic and industrial electrical installations. Manufactured using high-grade electrolytic copper, it ensures superior conductivity and minimal power loss. The twin-core construction is insulated with high-quality PVC, offering excellent flexibility, durability, and resistance to heat and abrasion. This KEI 1mm 2 Core 100m Flexible Wire is ideal for light-duty applications such as internal wiring of appliances, lighting circuits, and control panels, this 100-meter roll provides convenient length for various wiring needs. Its robust insulation meets safety standards, ensuring protection against electrical shocks and short circuits.

Product specification
BrandKEI
Product CategoryFRLS Multicore
Size of Conductor1 sq mm
Core2 Core
Length100 mtr
Conductor MaterialCopper
ColourBlack
Insulation MaterialFRLS PVC
Current Rating AC13 Amp
Resistance (Max.) per Km at 20° C19.5 ohm
Number/Nom. Dia of Wires* (Nom.)32/0.20 mm
Thickness of Insulation (Nom.)0.6 mm
Nominal Thickness of Sheath0.9 mm
Max. Overall Diameter6.9 mm
Voltage Drop (DC or Single Phase AC)43 mV
Voltage Drop (3 Phase AC)37 mV
CertificationIS-694:2010
Manufacturer DetailsKEI Industries Limited, D - 90, Okhla Industrial Area Phase - 1, Delhi - 110020, India
