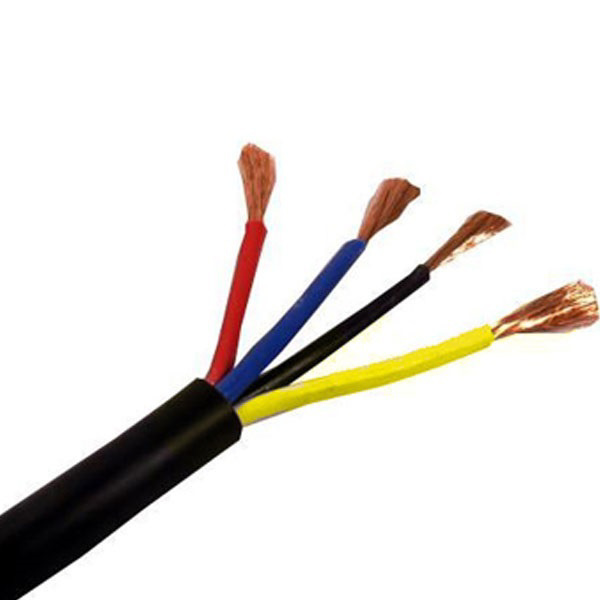

10 sq mm Four Core 100 Mtr Copper Flexible Wire is designed for robust and efficient power distribution in heavy-duty electrical setups. Featuring four high-grade copper conductors, this cable ensures superior conductivity and operational safety. The additional core enables greater flexibility for multi-phase connections or control wiring in complex circuits. Encased in durable, heat- and moisture-resistant PVC insulation, it offers enhanced protection against mechanical wear and environmental stress. Ideal for use in industrial machinery, commercial setups, and high-capacity electrical panels, this KEI 10mm 4 Core 100m Flexible Wire provides long-term performance with simplified installation.

Product specification
BrandKEI
Product CategoryFRLS Multicore
Size of Conductor10 sq mm
Core4 Core
Length100 mtr
Conductor MaterialCopper
ColourBlack
Insulation MaterialFRLS PVC
Current Rating AC51 Amp
Resistance (Max.) per Km at 20° C1.91 ohm
Number/Nom. Dia of Wires* (Nom.)80/0.40 mm
Thickness of Insulation (Nom.)1.0 mm
Nominal Thickness of Sheath1.4 mm
Max. Overall Diameter18.7 mm
CertificationIS-694:2010
Manufacturer DetailsKEI Industries Limited, D - 90, Okhla Industrial Area Phase - 1, Delhi - 110020, India
