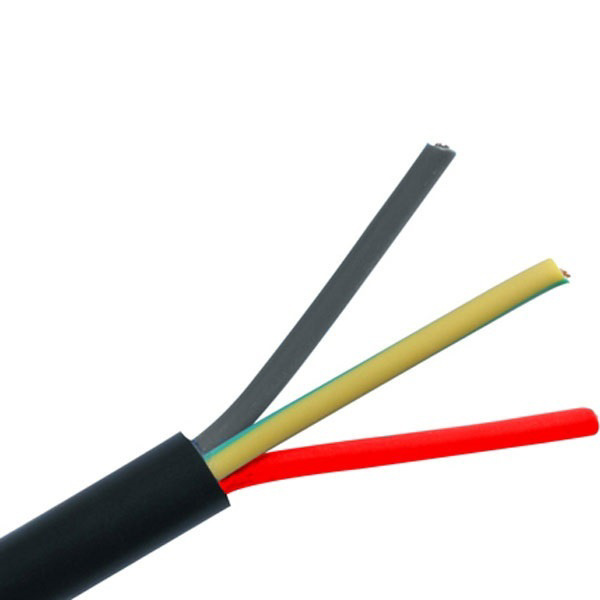

The 1.5 sq mm 3 Core Copper Flexible Wire is designed for efficient and streamlined wiring in residential and light commercial setups. With three individually insulated copper conductors - typically used for live, neutral, and earth. This KEI 1.5mm 3 Core 100m Flexible Wire helps eliminate the need to install three separate single-core wires, making installation quicker and neater. The high-grade copper ensures excellent conductivity, while the flexible PVC sheath provides resistance to heat, moisture, and mechanical wear. Supplied in a 100-metre coil, it is ideal for powering appliances, lighting systems, and small machinery with enhanced safety and convenience.

Product specification
BrandKEI
Product CategoryFRLS Multicore
Size of Conductor1.5 sq mm
Core3 Core
Length100 mtr
Conductor MaterialCopper
ColourBlack
Insulation MaterialFRLS PVC
Current Rating AC18 Amp
Resistance (Max.) per Km at 20° C13.3 ohm
Number/Nom. Dia of Wires* (Nom.)30/0.25 mm
Thickness of Insulation (Nom.)0.6 mm
Nominal Thickness of Sheath0.9 mm
Max. Overall Diameter8.2 mm
Voltage Drop (DC or Single Phase AC)31 mV
Voltage Drop (3 Phase AC)26 mV
CertificationIS-694:2010
Manufacturer DetailsKEI Industries Limited, D - 90, Okhla Industrial Area Phase - 1, Delhi - 110020, India
