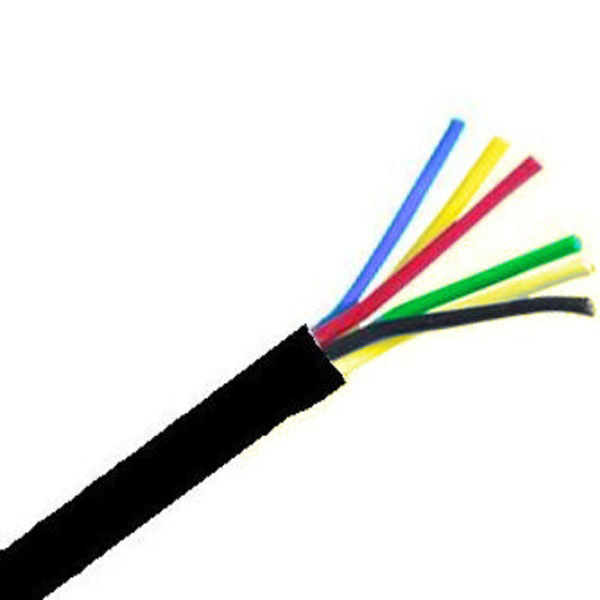

Engineered for high-performance wiring needs, the 1.5 sq mm 6 Core Copper Flexible Wire is ideal for control circuits, automation systems, and industrial equipment. With six individually insulated copper conductors, this 100-metre cable allows efficient multi-point connections in a single run. The flexible PVC sheath enhances resistance to mechanical stress, chemicals, and environmental conditions. Compact, tangle-free design of KEI 1.5mm 6 Core 100m Flexible Wire ensures hassle-free installation, even in complex routing scenarios. Suitable for both fixed and mobile equipment, this wire meets standard electrical safety norms and offers long-term reliability in critical setups.

Product specification
BrandKEI
Product CategoryFRLS Multicore
Size of Conductor1.5 sq mm
Core6 Core
Length100 mtr
Conductor MaterialCopper
ColourBlack
Insulation MaterialFRLS PVC
Current Rating AC18 Amp
Resistance (Max.) per Km at 20° C13.3 ohm
Number/Nom. Dia of Wires* (Nom.)30/0.25 mm
Thickness of Insulation (Nom.)0.6 mm
Nominal Thickness of Sheath1.0 mm
Max. Overall Diameter10.7 mm
Voltage Drop (DC or Single Phase AC)31 mV
Voltage Drop (3 Phase AC)26 mV
CertificationIS-694:2010
Manufacturer DetailsKEI Industries Limited, D - 90, Okhla Industrial Area Phase - 1, Delhi - 110020, India
