Company Cat No: 4200 56

Special Features:

  • Thermal adjustable from 0.8 to 1 In
  • Magnetic fixed at 10 In
  • MCCBs for switching, remote tripping and protection of low voltage electrical system
  • Supplied with cage terminals 70 mm2 max. (flexible cable) or 95 mm2 max. rigid cable with accessories
  • Can be fitted with accessories and DPX3 common auxiliaries.

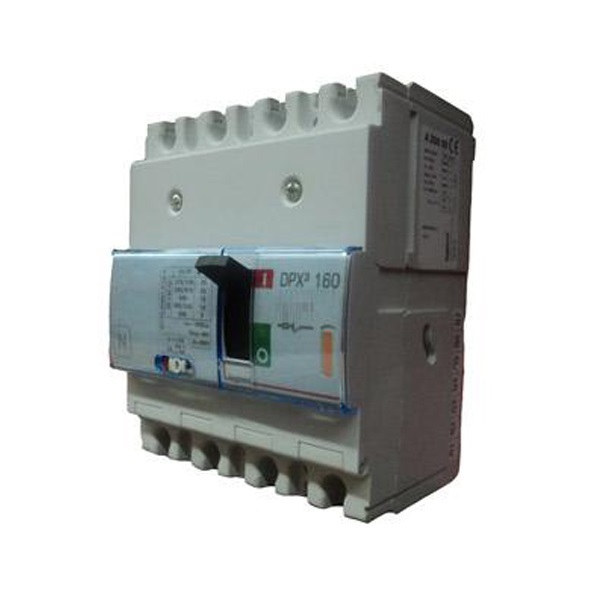

This 420056 125A 25kA 4 Pole MCCB works with 3 phase power and used for electrical loads like industrial and commercial motors.

Legrand DPX3 is available in 3 frame sizes: DPX3 160, DPX3 250 & DPX3 630, covers requirements from 16A upto 1600A with adjustable thermal magnetic release. Optional accessories like Rotary Handles, Motor Operators etc. Are also available. These MCCBs can be used for switching, remote tripping and protection of low voltage electrical system.

Product specification
BrandLegrand
Product CategoryFour Pole MCCB
Current Rating125 Amp
Short Circuit Withstand Capacity25kA
Rated Impulse Withstand Voltage Uimp (kV)8 kV
Nominal Frequency50/60 Hz
Voltage380 / 415 V ±
Frame SizeDPX3 160
Insulation Voltage800 V
Release TypeThermal-magnetic
Ambient Temperature (°C)40
Mounting TypeOn rail 4 or on plate
MaterialHalogen-Free Plastic Materials
ColourWhite
Suitable ForSuitable for all environment [tropicalization, pollution, salt corrosion etc]
Package Contents1 FP MCCB
Warranty2 Years (against manufacturing defects)
CertificationIEC 60947-2
Manufacturer DetailsNovateur Electricals & Digital Systems Pvt. Ltd. 61/62, 6 th Floor Kalpataru Square, Kondivita Road, Off Andheri-Kurla Road, Andheri East, Mumbai, Maharashtra - 400059, India
