Company Cat No: DX3 411369

Special Feature:

  • Bi-connect termination
  • Finger proof terminal
  • Two-position DIN rail clamp
  • Insulated sliding shutter
  • 35 mm2 terminal capacity
  • Label holder
  • Large two-position dolly

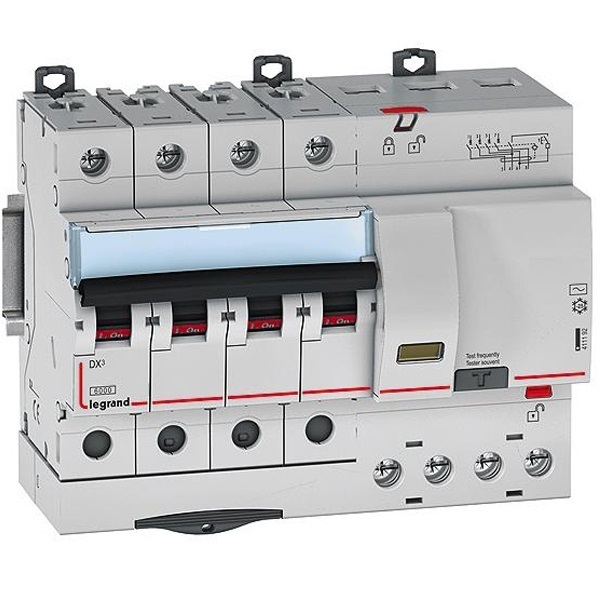

This DX3 411369 63A 30mA Four Pole RCBO helps in sensing the faults like over currents and earth leakage current and trips the circuit, providing complete protection to both connected equipments and people. It is used in Three Phase Supply to break the phase and the neutral.

Product specification
BrandLegrand
Product CategoryFour Pole RCBOs
Current Rating63A
Rated Sensitivity30mA
ColourWhite
Voltage12V/AC
Rated Operating Voltage Ue230/415V~
Insulation Voltage500V
Nominal Frequency50/60 Hz
Rated Impulse Withstand Voltage Uimp (kV)6kV
Mounting TypeOn symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents1 FP RCBO
CertificationIEC 61008 - 1
MaterialHalogens-free plastic materials
Warranty2 Years (on manufacturing defect)
