Company Cat No: 4118 86

  • ISI marked.
  • Integrated label holder.
  • Ergonomic Grey color dolly
  • Sliding bottom clamp
  • Color coded on/off indication on dolly
  • Biconnect lower terminals
  • IP20 protected terminals
  • 35 sq mm terminals
  • Sliding shutters.

Special Feature:

  • Bi-connect termination
  • Finger proof terminal
  • Two-position DIN rail clamp
  • Insulated sliding shutter
  • 35 sq mm terminal capacity
  • Label holder
  • Large two-position dolly

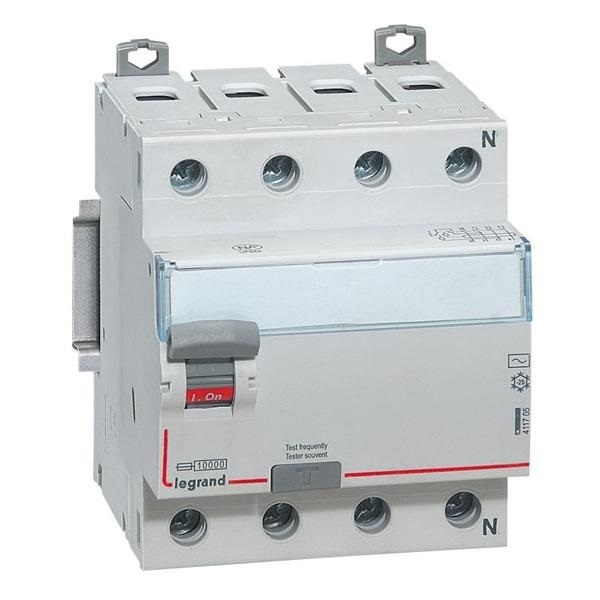

Legrand DX3 411886 25A 300mA Four Pole RCCB is capable to sense and compare the difference between the live and neutral voltages and then breaks the circuit when there is any imbalance. Consequently, it provides complete electrical protection together with MCB to both humans as well as equipments. This 300mA Four Pole RCCB has clearly visible ON and OFF positions with red and green colour respectively. It is ideal to use in case of a three-phase supply connection that involves only three phase wires and a neutral. This product is ISI marked as per IS 12640-1.

Product specification
Product CategoryFour Pole RCCB
Current Rating25 A
Rated Sensitivity300 mA
Voltage12 V AC
Rated Operating Voltage Ue230/415V~
Insulation Voltage500 V
Nominal Frequency50/60 Hz
Rated Impulse Withstand Voltage Uimp (kV)6 kV
Mounting TypeOn symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents1 FP RCCB
CertificationIEC 61008 - 1
MaterialHalogens-free plastic materials
Warranty2 Years (against manufacturing defects)
