Company Cat No: 4085 92

The DX3 MCB series are suitable both for commercial and residential installation.


  • Integrated label holder for circuit identification.
  • Bi-connect terminals for cable and busbar.
  • Safety shutter.
  • ISI Marking and also Internationally certified.
  • Insulated sliding shutter.
  • Two position DIN rail clamp
  • Large cable terminals of 35mm2 capacity for better terminal.

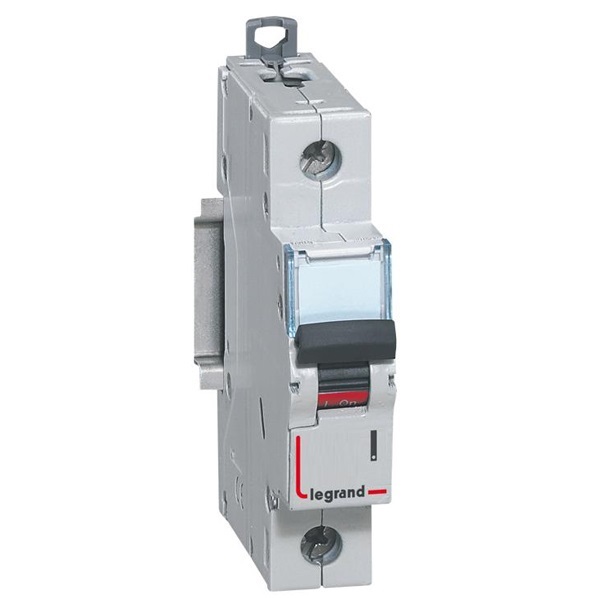

This DX3 408592 16A SP C-Curve 10kA MCB is a single pole highly durable MCB with finger touch proof terminals conforming to IP20 degree of protection. It is used in Single Phase Supply to break the phase only. It is ideal for the protection against overload and short circuit for Lighting & other Domestic Loads. So, anytime if there is a spike in line voltage or a sudden increase in line current, then this MCB will trip, causing the circuit/power to break, thereby eliminating any associated damage to the connected appliance/load.

Product specification
Product CategorySingle Pole MCB
SeriesLegrand DX3
Current Rating16 Amp
Triping CharacteristicsC-Curve
Short Circuit Withstand Capacity10kA
Voltage230 / 400 V AC
Rated Operating Voltage Ue440V
Insulation Voltage500 V
Nominal Frequency50/60 Hz
Mounting TypeOn symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents1 SP MCB
CertificationIEC 60947-2
MaterialHalogen-Free Plastic Materials
Warranty2 Years (against manufacturing defects)
Manufacturer DetailsNovateur Electricals & Digital Systems Pvt. Ltd. 61/62, 6 th Floor Kalpataru Square, Kondivita Road, Off Andheri-Kurla Road, Andheri East, Mumbai, Maharashtra - 400059, India
