Company Cat No: 4086 56

The DX3 MCB series are suitable both for commercial and residential installation.

Features:

  • Integrated label holder for circuit identification.
  • Bi-connect terminals for cable and busbar.
  • Safety shutter.
  • ISI Marking and also Internationally certified.
  • Insulated sliding shutter.
  • Two position DIN rail clamp
  • Large cable terminals of 35mm2 capacity for better terminal.

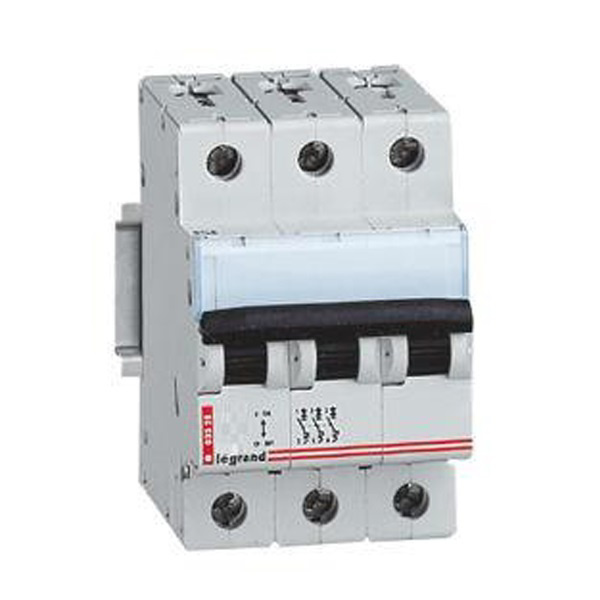

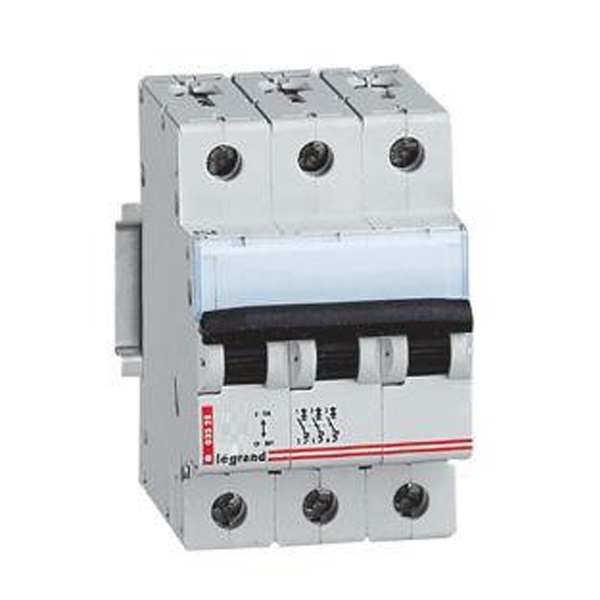

This DX3 408656 20A TP C-Curve 10kA MCB is a three pole highly durable MCB with finger touch proof terminals conforming to IP20 degree of protection. It is used in Three Phase Supply to break the phase and the neutral is not the part of the MCB. It is ideal for the protection against overload and short circuit for Motor and other Inductive loads. So, anytime if there is a spike in line voltage or a sudden increase in line current, then this MCB will trip, causing the circuit/power to break, thereby eliminating any associated damage to the connected appliance/load.

Product specification
BrandLegrand
Product CategoryThree Pole MCB
SeriesLegrand DX3
Current Rating20 Amp
Triping CharacteristicsC-Curve
Short Circuit Withstand Capacity10kA
ColourWhite
Voltage230 / 400 V AC
Rated Operating Voltage Ue440V
Insulation Voltage500 V
Nominal Frequency50/60 Hz
Mounting TypeOn symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents1 TP MCB
CertificationIEC 60947-2
MaterialHalogen-Free Plastic Materials
Warranty2 Years (against manufacturing defects)
Manufacturer DetailsNovateur Electricals & Digital Systems Pvt. Ltd. 61/62, 6 th Floor Kalpataru Square, Kondivita Road, Off Andheri-Kurla Road, Andheri East, Mumbai, Maharashtra - 400059, India
