  • True contact indication for individual pole
  • Label holder facility
  • L&t MCB conforms to IS/IEC 60898 and IEC 60947 -2
  • Breaking capacity of 10kA throughout the range
  • Low watt loss - almost 50% of the values prescribed by IS/IEC 60898
  • Trip free mechanism
  • Design as per advanced current limiting hammer trip mechanism
  • No Line-Load bias
  • Suitable for accessory fitment

So, anytime if there is a spike in line voltage or a sudden increase in line current, then this MCB will trip, causing the circuit/power to break, thereby eliminating any associated damage to the connected appliance/load.

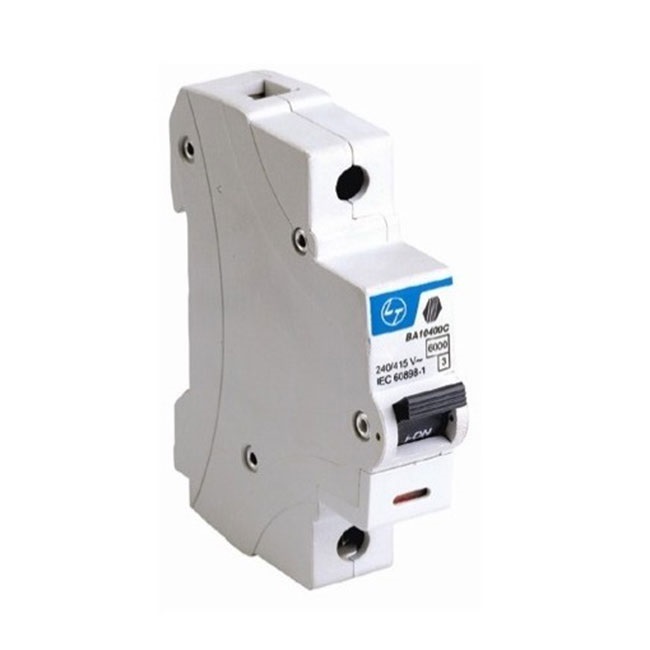

Product specification
Product CategorySingle Pole MCB
SeriesL&T Exora
Current Rating10 Amp
Triping CharacteristicsC-Curve
Short Circuit Withstand Capacity10kA
Voltage240 / 415V AC
Rated Operating Voltage Ue440V
Insulation Voltage500 V
Nominal Frequency50/60 Hz
Mounting TypeOn symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents1 SP MCB
CertificationIEC 60947-2
MaterialHalogen-Free Plastic Materials
Warranty2 Years (against manufacturing defects)
Manufacturer DetailsSchneider Electric India Private Limited , ESP, A-9, MIDC, Ahmednagar, Maharashtra - 414111, India
