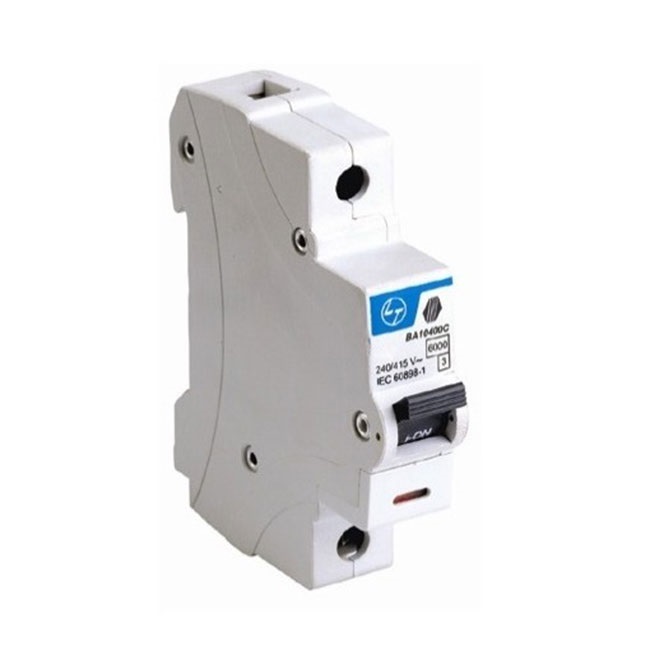

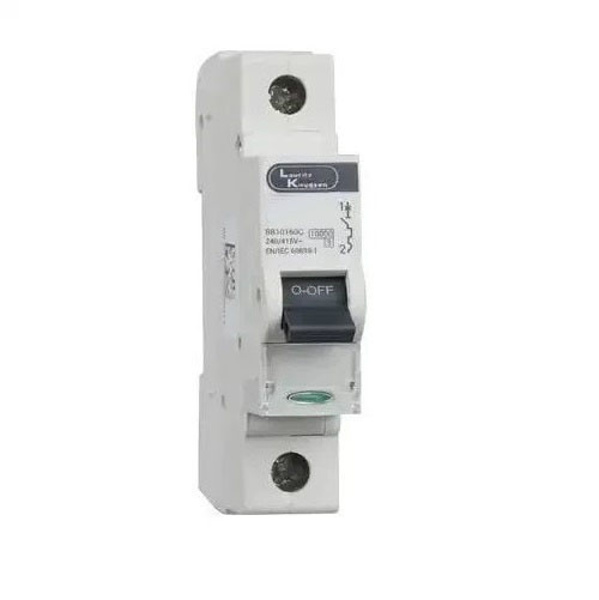

Lauritz Knudsen BB10630C 63A C-Curve 10kA 1 Pole MCB

Be the first one to review this product

Features

Brand: Lauritz Knudsen

Product Category: Single Pole MCB

Series: Lauritz Knudsen Exora

Current Rating: 63 Amp

Bestofelectricals Assurance

Brand New
Secure Payment

100% Genuine Products
Manufacturer Warranty

This 63A Single Pole C-Curve 10kA Miniature Circuit Breaker from the house of Lauritz Knudsen is an innovatively designed MCB that protects an electric circuit from any sort of damage caused by overloading or short circuits

Check serviceability at your Pincode:

MRP: Rs. 855

Selling Price: Rs. 599

You Save:

EMI Starts From View Plans

Bank Names
Kotak Mahindra Bank
ICICI Bank
Axis Bank
IndusInd Bank
HDFC Bank
HSBC Bank
Yes Bank
RBL Bank
Bank Of Baroda
Standard Chartered Bank
Pay Gate Amex
IDBI Bank

Period	EMI	Interest Amount	Total Amount
3	205	16 (16%)	615
6	105	28 (16%)	627
9	71	41 (16%)	640
12	54	53 (16%)	652
18	38	79 (16%)	678
24	29	105 (16%)	704
30	24	132 (16%)	731
36	21	159 (16%)	758
3	205	16 (15.99%)	615
6	105	28 (15.99%)	627
9	71	41 (15.99%)	640
12	54	53 (15.99%)	652
18	38	79 (15.99%)	678
24	29	105 (15.99%)	704
3	205	16 (16%)	615
6	105	28 (16%)	627
9	71	41 (16%)	640
12	54	53 (16%)	652
18	38	79 (16%)	678
24	29	105 (16%)	704
3	204	14 (14%)	613
6	104	25 (14%)	624
9	71	38 (15%)	637
12	54	50 (15%)	649
18	37	74 (15%)	673
24	29	98 (15%)	697
36	21	149 (15%)	748
3	204	13 (12.5%)	612
6	104	22 (12.5%)	621
9	70	34 (13.5%)	633
12	54	45 (13.5%)	644
18	37	66 (13.5%)	665
3	205	16 (16%)	615
6	105	28 (16%)	627
9	71	41 (16%)	640
12	54	53 (16%)	652
18	38	79 (16%)	678
24	29	105 (16%)	704
3	204	13 (13%)	612
6	104	25 (14%)	624
9	71	38 (15%)	637
12	54	50 (15%)	649
18	37	74 (15%)	673
24	29	98 (15%)	697
3	204	13 (13%)	612
6	104	25 (14%)	624
9	70	35 (14%)	634
12	54	50 (15%)	649
18	37	74 (15%)	673
24	29	105 (16%)	704
36	21	159 (16%)	758
3	204	12 (11.88%)	611
6	104	25 (14%)	624
9	71	38 (15%)	637
12	54	50 (15%)	649
18	37	74 (15%)	673
24	29	98 (15%)	697
3	204	14 (14%)	613
6	104	25 (14%)	624
9	70	35 (14%)	634
12	54	46 (14%)	645
18	37	74 (15%)	673
24	29	98 (15%)	697
3	204	13 (13%)	612
6	104	23 (13%)	622
9	70	33 (13%)	632
12	54	43 (13%)	642
3	205	16 (16%)	615
6	105	28 (16%)	627
9	71	41 (16%)	640
12	54	53 (16%)	652

Qty:

i h

True contact indication for individual pole
Label holder facility
Lauritz Knudsen MCB conforms to IS/IEC 60898 and IEC 60947 -2
Breaking capacity of 10kA throughout the range
Low watt loss - almost 50% of the values prescribed by IS/IEC 60898
Trip free mechanism
Design as per advanced current limiting hammer trip mechanism
No Line-Load bias
Suitable for accessory fitment

So, anytime if there is a spike in line voltage or a sudden increase in line current, then this MCB will trip, causing the circuit/power to break, thereby eliminating any associated damage to the connected appliance/load.

Product specification

Brand	Lauritz Knudsen
Product Category	Single Pole MCB
Series	Lauritz Knudsen Exora
Current Rating	63 Amp
Triping Characteristics	C-Curve
Short Circuit Withstand Capacity	10kA
Colour	White
Voltage	240 / 415V AC
Rated Operating Voltage Ue	440V
Insulation Voltage	500 V
Nominal Frequency	50/60 Hz
Mounting Type	On symmetric rail EN/IEC 60715 or DIN 35 rail.
Package Contents	1 SP MCB
Certification	IEC 60947-2
Material	Halogen-Free Plastic Materials
Warranty	2 Years (against manufacturing defects)
Manufacturer Details	Schneider Electric India Private Limited , ESP, A-9, MIDC, Ahmednagar, Maharashtra - 414111, India
