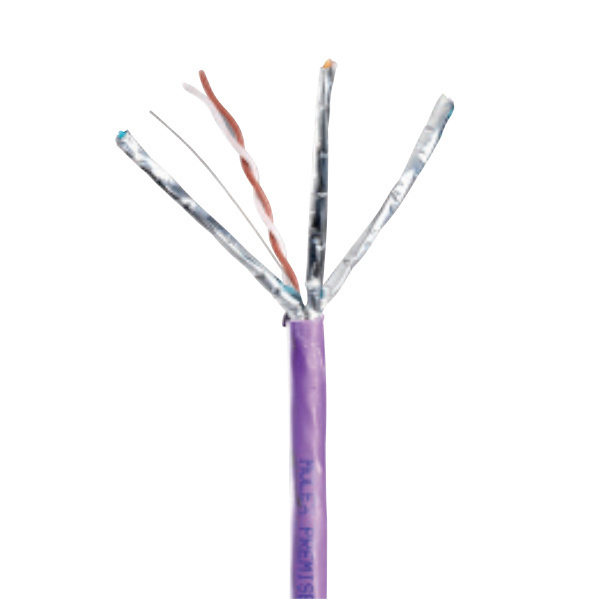

Molex 500 mtr Cat 6A U|FTP LS0H Networking Cable

Features and Advantages

• Outstanding signal isolation
• The cable is compliant with ISO/IEC 11801 amendment 2 and TIA/EIA 568-C.2
• Enhanced performance 4 pair U/FTP LS0H cable
• Resistant to alien crosstalk
• Color coded for ease of termination

Mechanical

• Conductor Size: 23AWG
• Primary Insulation: Foamed Polyethylene
• Screen material: Laminated Aluminium
• Sheath Type: LS0H
• Nominal OD: 7.4 + 0.3 mm
• NVP: 75-77%
• Screen: Each pair enclosed in laminated aluminium foil
• Drain Wire: tin-coated copper
• Pulling Force: 110N maximum
• Short term. bend radius: 8 x OD mm
• Long Term bend radius: 4 x OD mm
• Operating Temperature
• Installation: 0˚C to +50˚C
• Operation: -20˚C to +70˚C

Electrical Characteristics:

• Capacitance: < 5.6nF/100m
• DC Resistance: ≤ 9.38Ω/100m
• Propagation Delay: 514 + 36f1/2 nS/100m max @1-500 MHz
• Propagation Delay Skew: 45 nS/100 max @ 1-500 MHz
• Mean Impedance: 100 ± 15Ω
• Voltage Rating: 2V dc maximum
• Resistance Unbalance: 5% max.
• Coupling Attenuation: 45dB min @30-100 MHz 40-20 Log (f/100) @ 100-500 MHz
