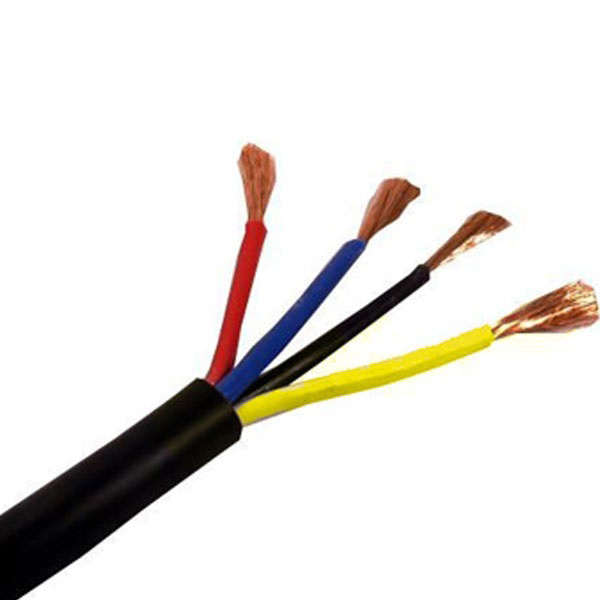

The 0.5mm 4 Core Copper Flexible Wire is a high-quality multi-core cable designed for low-voltage electrical and signal transmission applications. It features four finely stranded copper conductors insulated with premium-grade PVC, ensuring excellent flexibility, conductivity, and insulation resistance. This wire is ideal for interconnection in control panels, light-duty power supplies, and electronic equipment. The four-core construction of Plaza 0.5mm 4 Core 100m Flexible Wire is suitable for circuits requiring multiple connections within a compact space. Easy to install and route, it is best suited for use in dry indoor environments. Its reliability and conformity to industry standards make it a preferred choice for safe and efficient wiring.

Product specification
BrandPlaza
Product Category2, 3, 4 & 6 Core Cables
Size of Conductor0.5 sq mm
Core4 Core
Length100 mtr
Conductor MaterialCopper
ColourBlack
Insulation MaterialPVC
Current Rating AC5 Amp
Resistance (Max.) per Km at 20° C39 ohm
Number/Nom. Dia of Wires* (Nom.)16/0.2 mm
Thickness of Insulation (Nom.)0.6 mm
Nominal Thickness of Sheath0.9 mm
Max. Overall Diameter7.2 mm
Voltage Drop (DC or Single Phase AC)83 mV
Voltage Drop (3 Phase AC)72 mV
CertificationIS-694:2010
Manufacturer DetailsPlaza Cables, A-74, Okhla Industrial Area, Phase-II, New Delhi-110020
