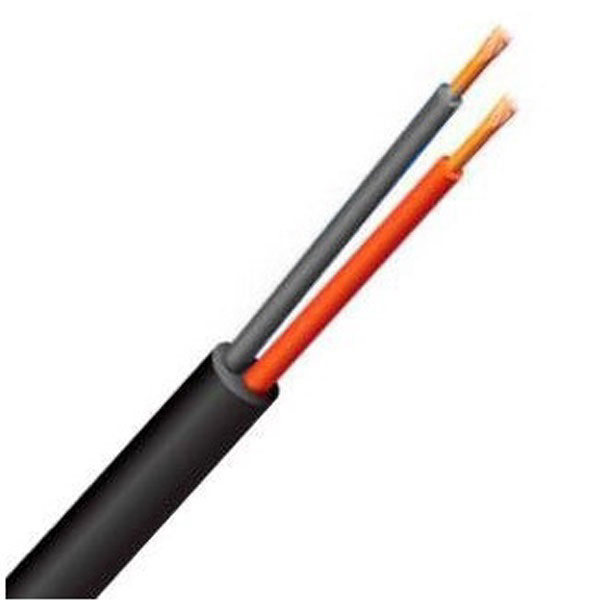

This RR Kabel 0.5mm two core wire is a specially designed cable that has two separate conductors coated with a special insulator, making it more flexible to cope with pressure associated with the moving objects. It is used where only single power phase is required to be conducted or in the appliances that do not require any earth connection.

Product specification
BrandRR Kabel
Product Category2, 3, 4 & 6 Core Cables
Size of Conductor0.5 sq mm
Core2 Core
Length100 mtr
Conductor MaterialCopper
ColourBlack
Insulation MaterialPVC
Current Rating AC5 Amp
Resistance (Max.) per Km at 20° C39 ohm
Thickness of Insulation (Nom.)0.6 mm
Nominal Thickness of Sheath0.9 mm
Max. Overall Diameter6.9 mm
CertificationIS-694:2010
